Lucid AI’s Process Agent is a powerful, interactive tool designed to help you build process diagrams by generating an initial draft based on a description. The agent then refines the diagram through intelligent, clarifying questions. This process helps you define triggers, owners, and specific steps to ensure your process maps are both accurate and comprehensive. Read this article to learn more.
Lucid’s AI capabilities are currently available to all users but may be subject to a paid subscription model in the future.
Plan availability: Free, Individual, Team, and Enterprise.
- Not available on FedRAMP accounts.
- See the Lucid Plans article for more information about what is available on your account or the Upgrade your Lucid account article for instructions to upgrade.
Access the Process Agent
To access Lucid AI’s Process Agent, follow these steps:
- Open a Lucid document.
- Select
the Lucid AI icon from the top of the Primary Toolbar on the left side of the page.
- Select Document a process from the options below the text box.
The Process Agent icon will appear, indicating that it is enabled. Click the X next to the icon to disable it.
You can now chat with the Process Agent. Start by providing a detailed description of the process diagram you want to build and include any relevant files. After the initial description, the Process Agent may ask follow-up questions to refine the diagram.
Note: Creating multiple diagrams with the Process Agent within the same Lucid document (including on separate pages) is not supported.
Process Agent example

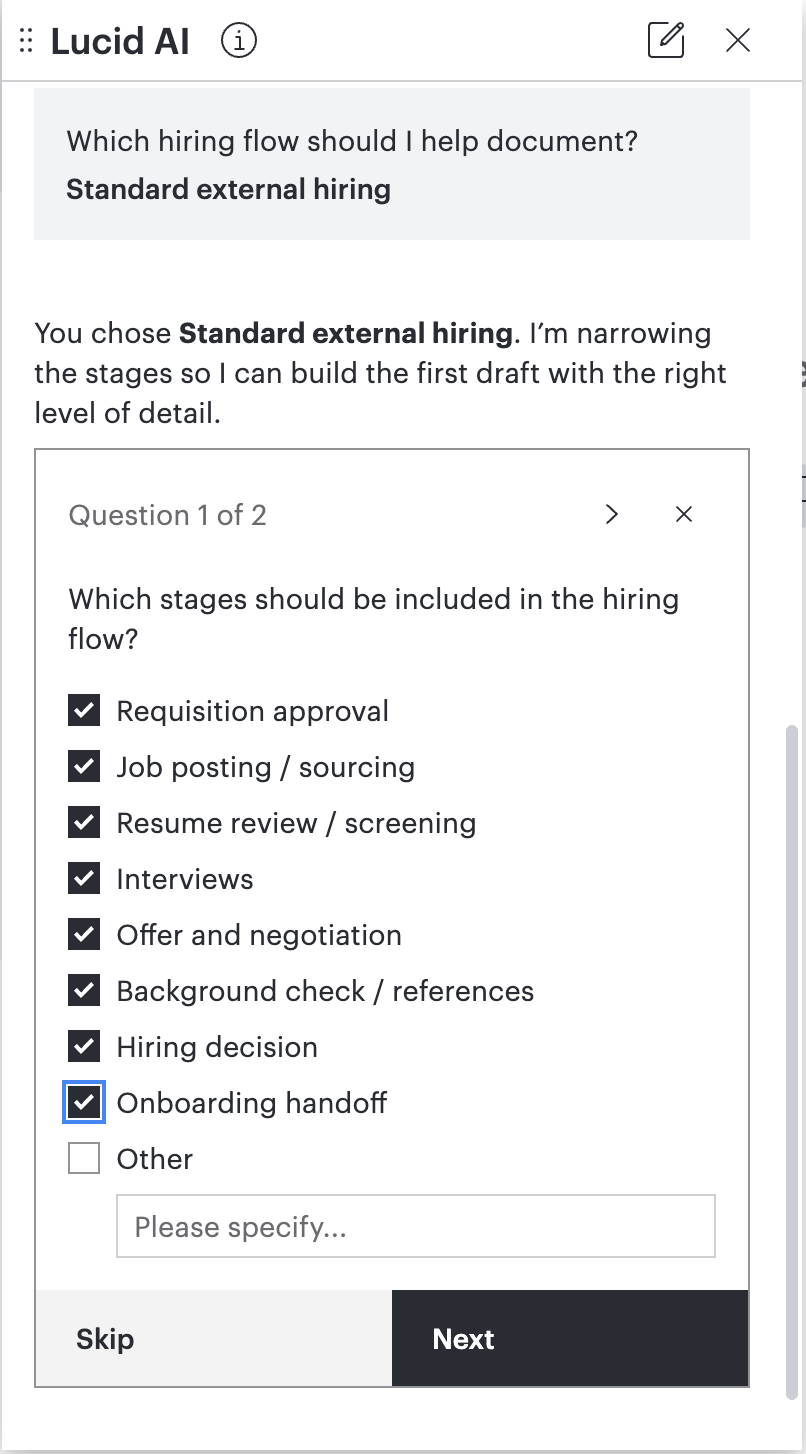

The image below shows the Process Agent helping to create a process diagram for a company’s hiring process. After the initial description, it asked follow-up questions such as:
- Which stages should the hiring process include?
- What usually starts the hiring process?
- Who are the main people or teams involved?
Tip: If you need the Process Agent to ask additional questions, type “Continue together”. The agent will ask more clarifying questions to help guide you through further refining of the diagram.
Parts of a diagram created by the Process Agent
Process context frame
Before the Process Agent produces the first draft, it creates a process context frame where it includes any relevant files and a record of important information you’ve provided.

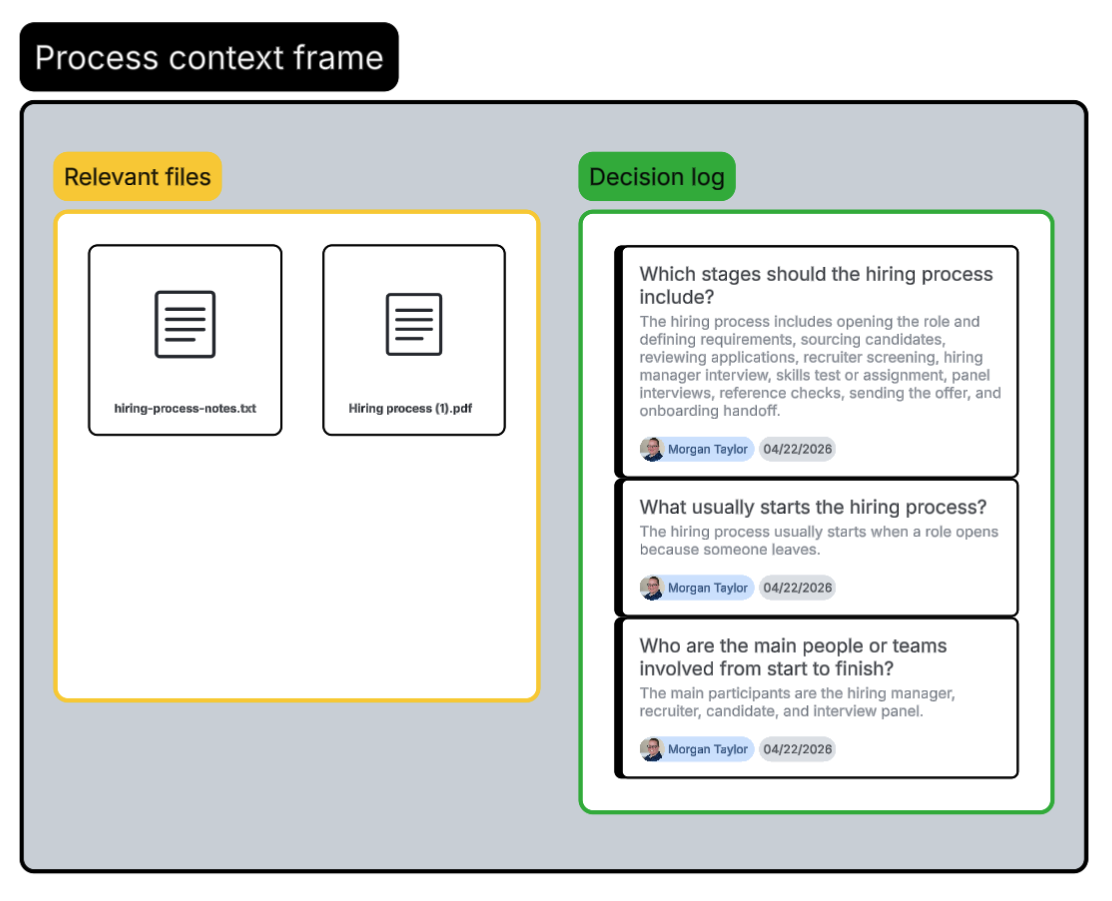

After answering the questions in the example above, the user uploaded files in the chat window for the Process Agent to reference. Using the provided files and the context gained by answering the questions, the Process Agent generated the context frame shown below.
As you give more context to the Process Agent, it adds it as documentation to the frame and updates the process flow accordingly.

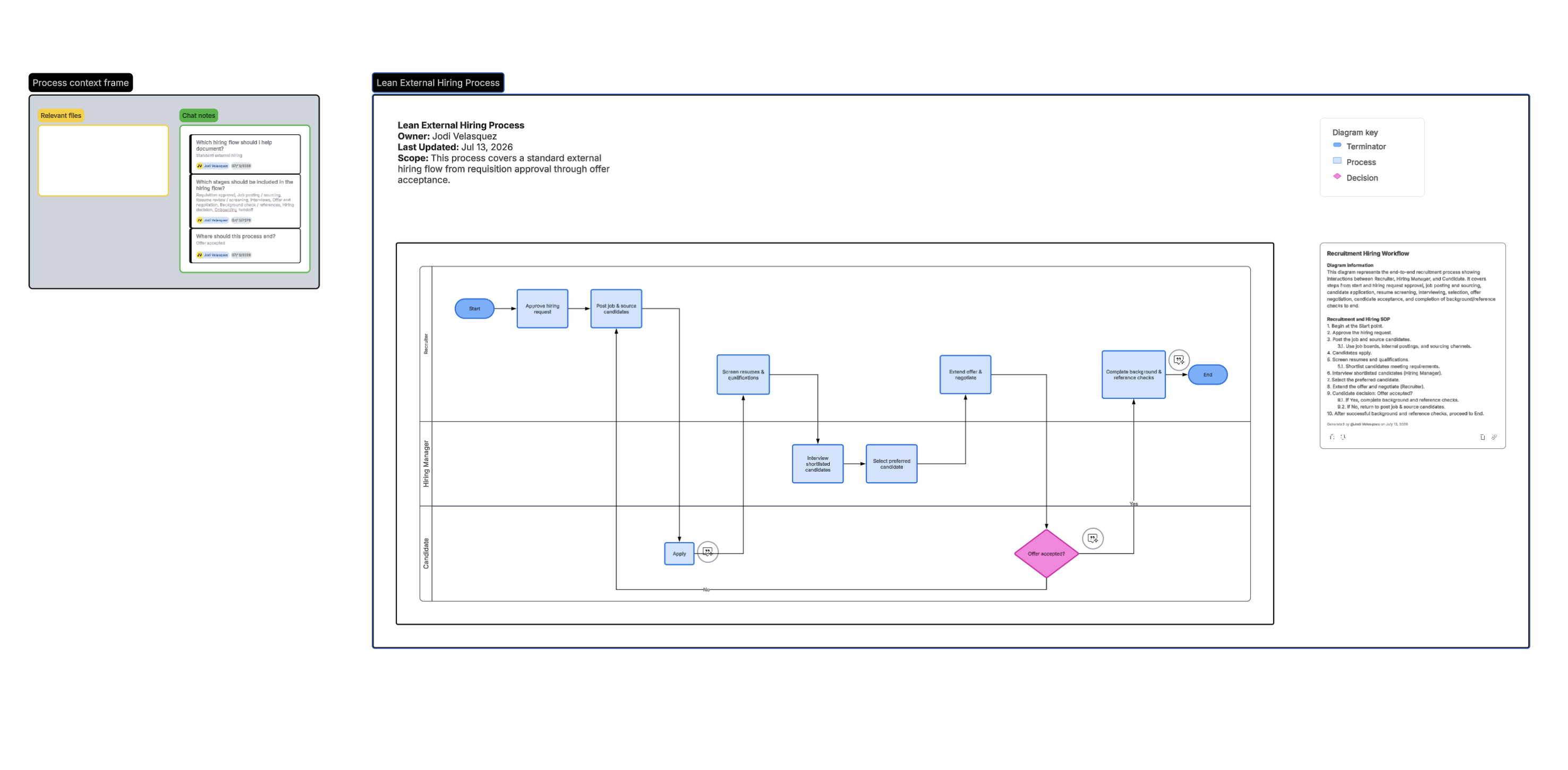

Process output
After the process context frame is generated, the Process Agent creates the process flow which includes a:
- Title
- Owner
- Last updated date
- Scope description
- Diagram key
- Diagram outline
Manage a diagram created by the Process Agent
Review and suggest improvements

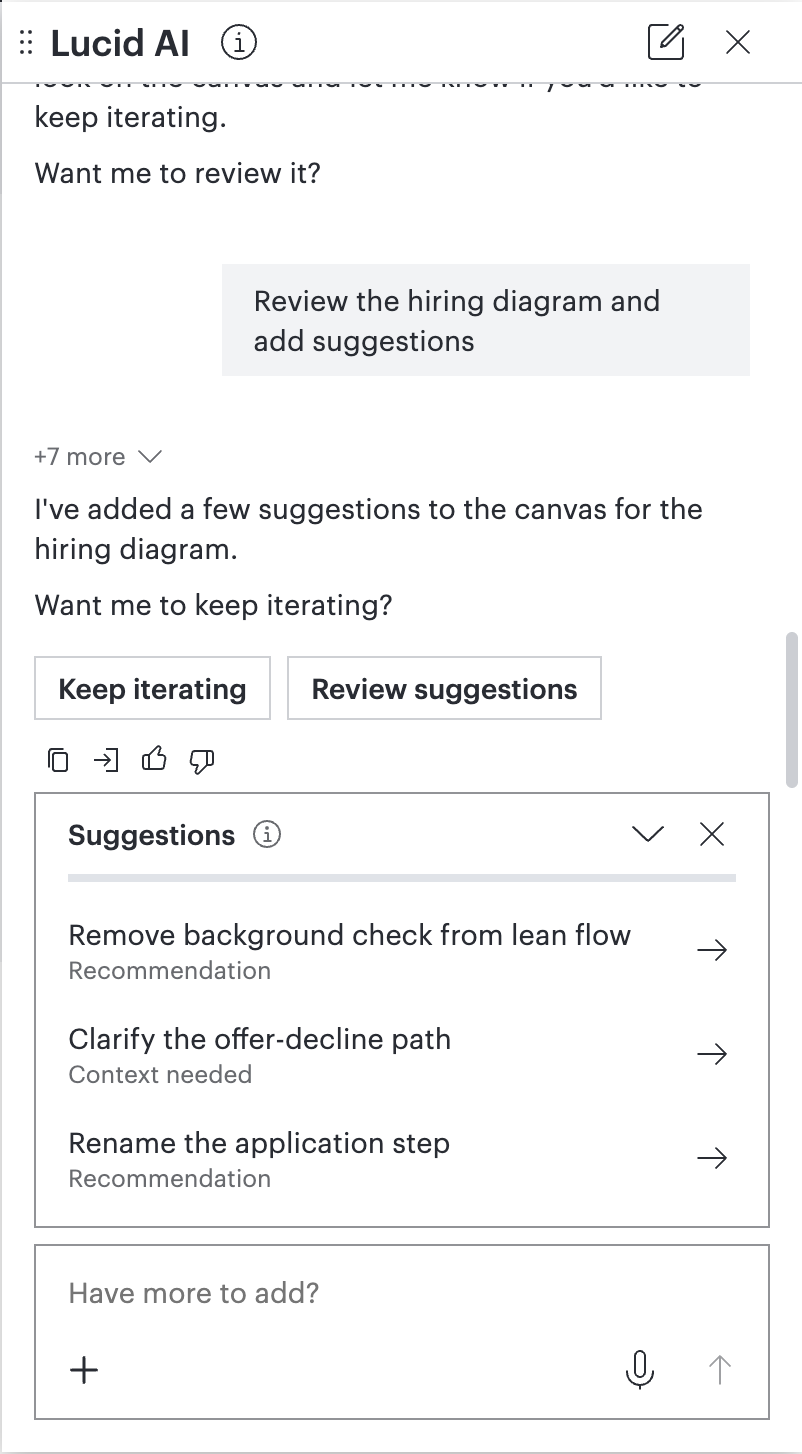

After the Process Agent has generated an initial diagram, it can review the diagram and suggest improvements. To start this process, click Suggest improvements from the Lucid AI chat panel after the initial diagram has been created.
The Process Agent will review the diagram and provide suggestions. You can:
- Select from the options provided by the Process Agent.
- Click the arrow to the right of an individual suggestion to navigate to the specific location in the diagram.
If you click the arrow to the right of a suggestion to navigate to its location on the diagram, select one of the following options to proceed:
-
Accept to prompt the Process Agent to make the suggested change.
- If the Process Agent determines that it needs more context before it can make the change, this option will not be available.
- Ignore the suggestion.
- Discuss in chat to provide more context to the Process Agent before accepting the suggested change.
Keep your process up to date
As changes happen within your organization, you can give new information to the Process Agent at any time. To do so, access the Process Agent, then type any updates you want to provide. The Process Agent will revise the process to incorporate the new context.
Note: You can provide updates to the Process Agent even if you’ve deleted your previous chat. The agent uses the existing context frame and flow to make the necessary changes.
FAQ
How will you use my data?
Lucid is dedicated to upholding its commitments to you regarding the privacy, security, and safety of your data, including with any AI features. Please see our Terms of Service and your Enterprise MSA, if applicable.
We do not use customer data to train models in a way that breaches the confidentiality of our customers' data. We do not use your prompt inputs to generate content for other customers based on your data. We do store documents for your use and any content on those documents are stored for your use as well.
As we expand our AI capabilities we will continue to do so in a way that does not breach the confidentiality of our customers' data.
Why don’t I see the Lucid AI icon in my Primary Toolbar?
If you don’t see the Lucid AI icon in your Primary Toolbar, this may be because your admin has disabled AI features for your account. Reach out to your Lucid admin for more information. If you are an admin, you control whether users have access to this feature. For more information, check out our Lucid admin panel: Lucid AI article.
Which AI models is Lucid using?
Lucid employs AI models powered by Microsoft Azure OpenAI Service and AWS Bedrock. Please visit our Sub-Processor List to learn more about their approach to data, privacy and security and to stay up-to-date with other best-in-class vendors we may use in the future.
Where can I get more information about AI in Lucid?
Read our blog, contact sales, and visit the Lucid Community to learn more, get involved, and share feedback about your experience using AI in your workflow.
