The Timeline feature allows you to easily create timelines to show past events or future plans. Use them for project management, roadmaps, school projects, and presentations.

This feature is available to Individual, Team, and Enterprise accounts. See the Upgrade your Lucid account article for instructions to upgrade.

Add a Timeline

Add a new Timeline

Select the Timelines icon from the Primary Toolbar and drag onto the canvas.

Add a card to a Timeline

Double-click the space on the Timeline where you want the card to appear.

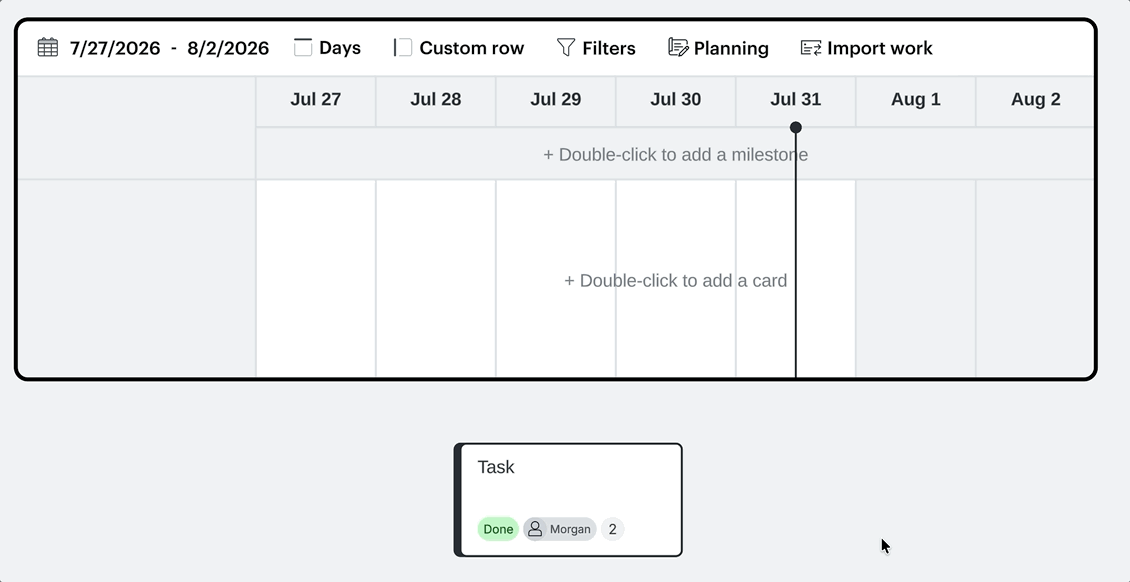

You can also drag an existing card on the canvas into the Timeline.

Adjust a Timeline

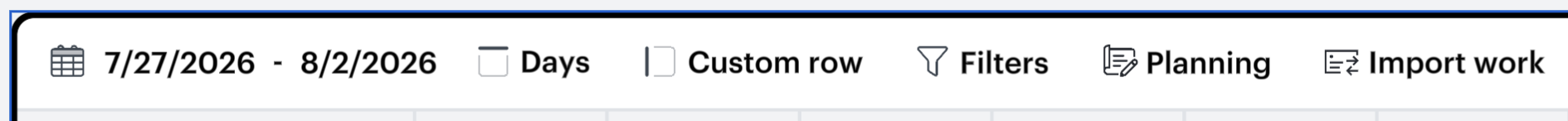

Select a Timeline to access the context menu. From this menu, you can:

Determine date range in Days, Weeks, or Months.

This range appears along the x-axis of the Timeline.

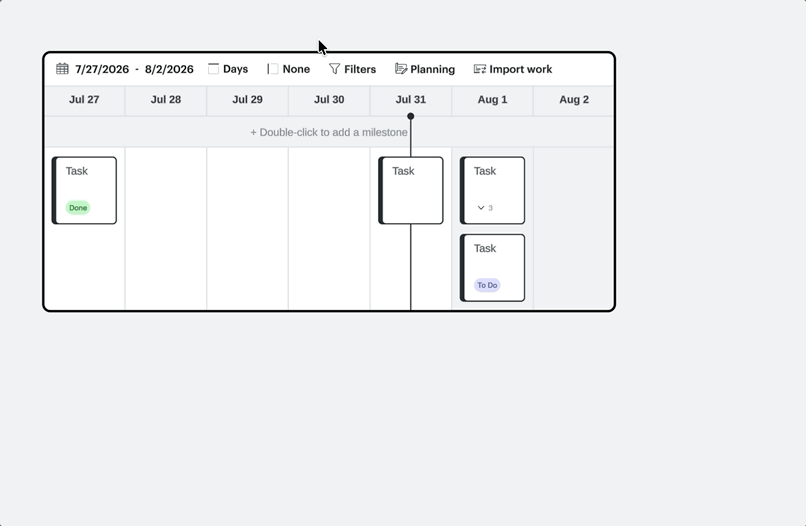

Group cards within a Timeline by Status, Assignee, or Estimate.

This will appear on the y-axis of the Timeline.

Adjust date range

Select the Timeline.
Click the general time interval dropdown and select Days, Weeks, or Months.
Set the Start Date and End Date.

You will see all changes automatically reflected on your Timeline.

Add details to a Timeline’s y-axis

Select the Timeline.
Click the far-left dropdown in the Timeline context menu and select Status, Assignee, or Estimate.

The cards within your Timeline will be organized along the y-axis based on this selection.

Add a Today Marker

Select the Timeline.
Clickthe Flag icon in the Timeline context menu.
Toggle on "Today Marker".

Add a milestone

Select the Timeline.
Clickthe Flag icon in the Timeline context menu.
Toggle on "Milestones".
Double-click to add a milestone in the space between the date range and the Timeline cards.

Once you have added a milestone to your Timeline, single-click the milestone to:

Change fill color
Change text color
Adjust the deadline date
- You can also click and drag the milestone to a new position on the Timeline.
Adjust line style

To delete a milestone, single-click the milestone and press "Delete" on your keyboard. To rename a milestone, double-click the title, type a new name, and press "Enter" on your keyboard.

Add color to a Timeline

Adjust card color

Select a card.
In the context menu that appears, clickthe Color icon.
Select a color or set a custom color.

Adjust column color

Double-click a column header.
In the context menu that appears, clickthe Color icon.
Select a color or set a custom color.

Adjust text color

Select a card.
In the context menu that appears, clickthe Text options icon.
Clickthe Text color icon.
Select a color or set a custom color.

You will see all changes automatically reflected on your Timeline.

Resources

To learn more about this feature, explore the additional resources below. These resources are available in English only.

Community post

Manage your project using a Gantt Chart
