Leverage Visual Activities in Lucidchart and Lucidspark to empower your team to make better decisions using interactive activities that turn qualitative feedback into actionable insights. Vote on ideas, gather customer feedback, prioritize tasks, and rank discussion topics—achieving consensus is as simple as viewing the results. Read on for a description on adding Visual Activities to your canvas, how to customize them to fit your needs, and how to view and share the results.

Free	Individual	Team	Enterprise	FedRAMP

Watch: Visual Activities

Types of Visual Activities

Prioritization activities

With prioritization activities, participants can place or drag items along an axis or matrix.

Prioritization activity layouts include:

Horizontal axis
Vertical axis
Double axis
Matrix
Single slider


Categorization activities

With categorization activities, participants can sort items into different categories. See the image below for examples of categorization activities.


Access Visual Activities

In Lucidchart

Open a Lucidchart document.
From the navigation menu on the left-hand side, selectthe Visual Activities icon.
Browse the template options for Visual Activities.
Click and drag a Visual Activity onto the canvas.

In Lucidspark

Open a Lucidspark board.
From the Primary Toolbar on the left-hand side, selectthe Visual Activities icon.
Browse the template options for Visual Activities.
Click and drag a Visual Activity onto the canvas.

Some Visual Activities templates are available to premium accounts only.

Tip: Add existing objects on your board or document to a new Visual Activity by right-clicking them and selecting Add to visual activity.

Edit a Visual Activity

You can edit and customize your Visual Activities right after adding it to the canvas. To edit your visual activity later, click Edit activity in the top-right corner. Once you are in editing mode, you can complete the following actions listed below.

Make items draggable

In order for participants to move an item during an activity, the item needs to be marked as draggable. Some templates have a designated area to drop shapes to automatically make them draggable.

Otherwise, shapes you add to other parts of the activity will show gray a gray icon in the top-right corner. If you hover over the gray icon it will say “static”. If you click on the icon, it will change to green a green icon and transform the shape to “draggable”.


Tip: To add more categories to a categorization activity, copy an existing category and paste it into the Visual Activity.

Hide hints

By default, hints for objects you add to your Visual Activities are visible–including the icon indicating whether an object is static or draggable. To hide these hints, click the three-dot menu in the top-right corner of your activity, and toggle off "Show Draggable Hint".

Customize title

To customize the title of a Visual Activity, follow these steps:

Click the title in the top-left corner of the activity.
Type in the new title.
Click Apply or press “Enter” on your keyboard.

Preview an activity

To preview the experience of your Visual Activities, follow these instructions:

Click Preview in the top-right corner of your activity.
Interact with your activity to ensure it is functioning as anticipated.
- Keep in mind that this is just a preview; responses you give while interacting with the preview will not be recorded.
When you are finished, click Back to editing in the top-left corner of the editor to return to continue editing your activity.

Save an activity

When you are satisfied with your activity, click Save changes in the top-right corner.

Make responses anonymous

If you are on a Team or Enterprise account, you can choose to make the results of your Visual Activity anonymous. To do this:

Click the three-dot menu in the top-right corner of the Visual Activity.
Toggle on “Anonymous responses”.

When anonymous responses are turned on, user names will appear in the results as numbered participants (Participant 1, Participant 2, etc.).

Note: Only the creator of a Visual Activity can make results anonymous. Once a participant has submitted their results on the Visual Activity, anonymous responses can no longer be toggled on or off.

Start a Visual Activity for active collaborators

If you are on a Team or Enterprise account, you can start a Visual Activity for all active collaborators currently in your document. To do this:

Click the three-dot menu in the top-right corner of the Visual Activity.
Select Start activity for everyone.

All users currently collaborating in the document will see a countdown message at the bottom of their screen where they have the option to click Not now. If users don't opt out, they will automatically be taken to the Visual Activity after five seconds.

View prioritization activity results

Results for prioritization activities can be displayed in two ways: object view or dot view. Single-axis activities also have the option to view results as a relative ranking, which prioritizes objects based on participant rankings rather than their position on the axis.

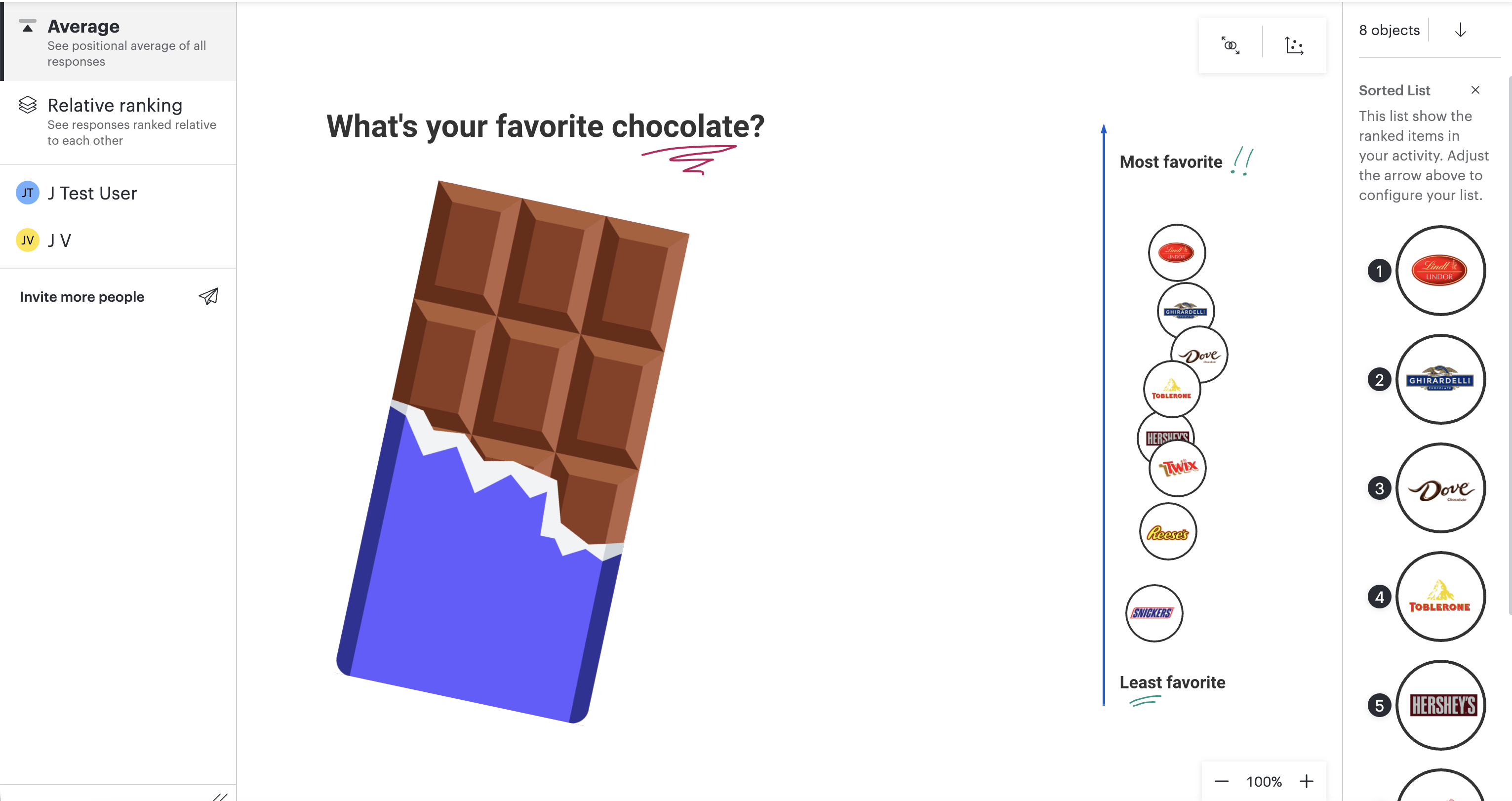

View results in object view
By default, your results will show the average results for all participants in object view. In object view, the draggable objects will appear on the axis or matrix in their original form. To view individual results for any participant, choose a participant’s name from the list on the left-hand side.

On the right-hand side, you can review a vertically numbered list of each draggable object that was included in the Visual Activity.

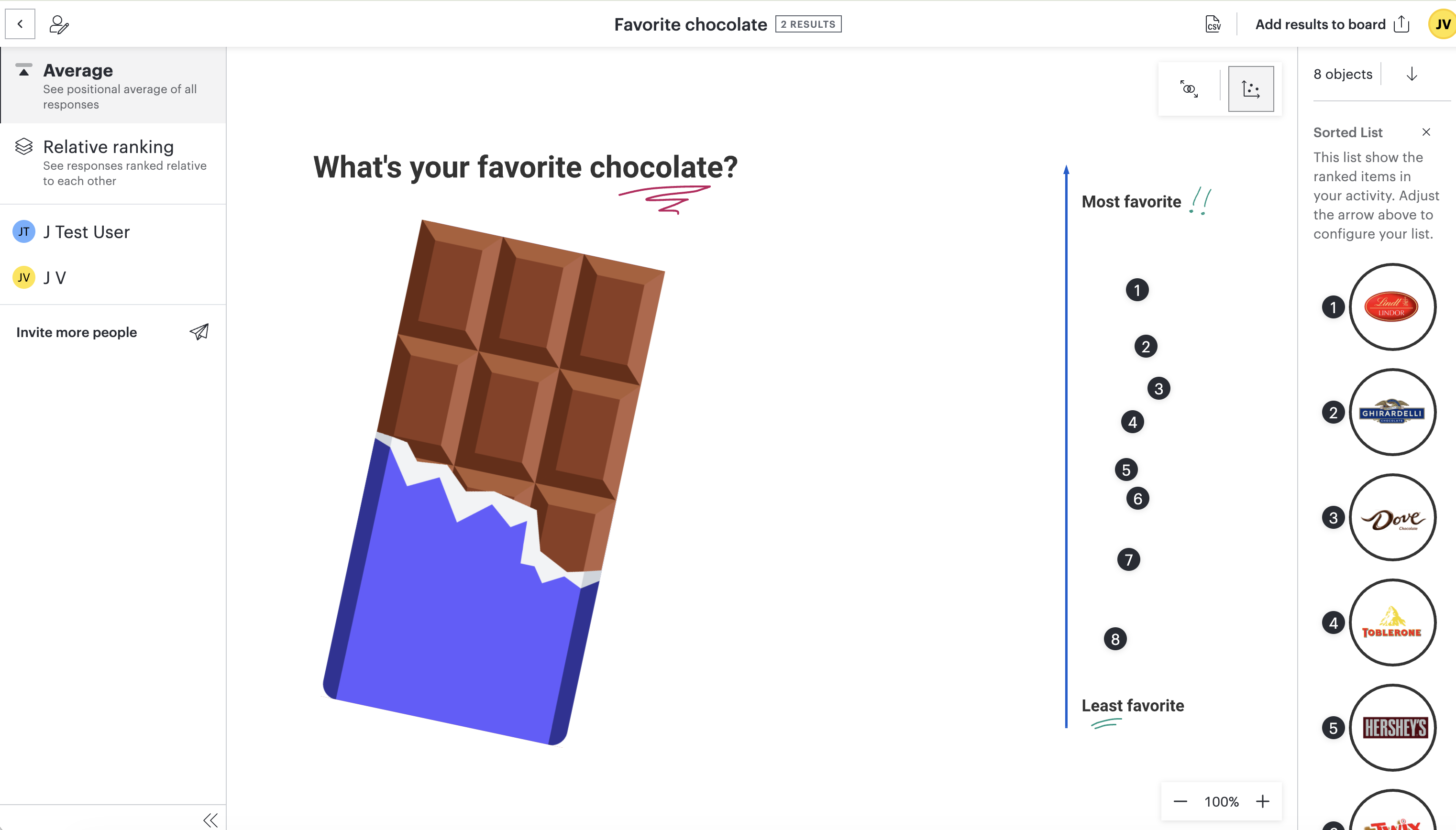

View results in dot view
To see a simplified version of the results, click dot the Dot view icon in the top-right corner of the Visual Activity results page. The numbered dots on your Visual Activity correspond with the numbers in the vertical list of draggable objects found on the far-right of the editor.


Tip: Click the “Resolve overlap” icon in the top-right corner of the results to clean up any objects that are arranged on top of each other.

View results as a relative ranking
With single-axis prioritization activities, you have the option to view results as a relative ranking. Visual Activity participants can vary in how they prioritize items relative to an axis—some participants use the entire scale while others might use only the top half. By using the relative ranking of each object instead of its location on the axis, each object is prioritized based on its importance compared to other objects. To access, click Relative ranking from the top-left corner of the results page.

Learn more: For more information about how relative ranking is determined, check out this post from the Lucid Community.

View categorization activity results

Results for categorization activities can be displayed in two ways: overview or object view.

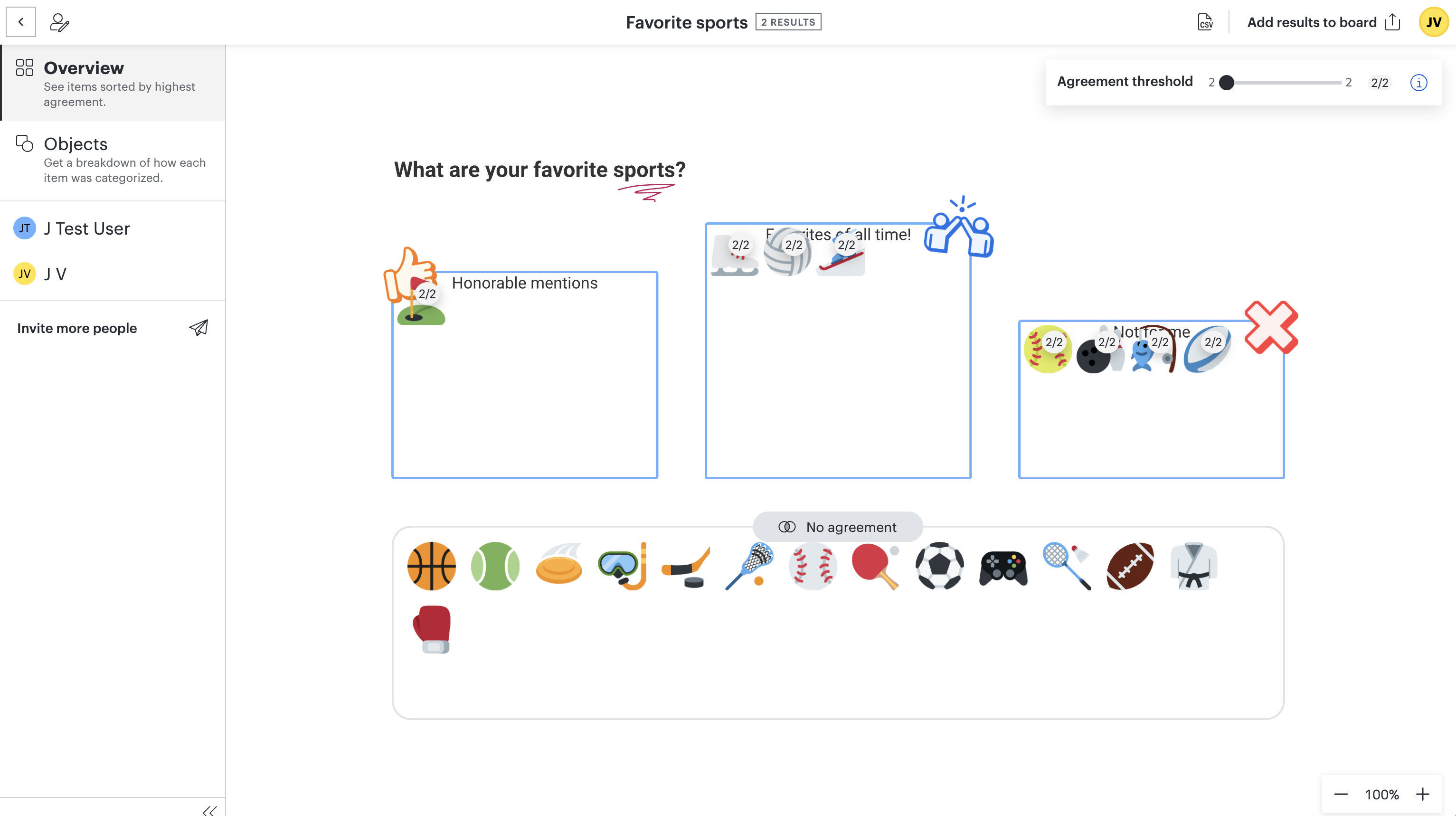

View results as an overview
By default, your results will show an overview of all participants based on a majority agreement threshold. The agreement threshold is a way to see how much—or how little—participants agree on a topic. This threshold can be adjusted using the slider in the top-right corner of the results.

To view individual results for any participant, choose a participant’s name from the list on the left-hand side.


View results by object
To see a detailed version of the results by object, click Objects in the top-left corner of the Visual Activity results page. This display shows the specific results for each object including what categories it was placed into the most. Click an object to see a breakdown of which participants sorted an object into each category.


FAQ

Can I reset a Visual Activity's results?
Yes. There are two methods to reset the results.

The first options is from the results page, you can select Re-create this activity from the bottom of the page. This will create a new Lucidchart document or Lucidspark board that contains just the Visual Activity.
The second option is you can select the Visual Activity, copy it, then paste it to a new location.

Both of these options preserve the contents of the Visual Activity, but removes all previous participant data. If you are doing the Visual Activity with the same participants, you will need to send them a new link to share the duplicated activity with them.

What happens if a participant on a Visual Activity changes their responses?
If a participant changes their responses on a Visual Activity sent to them, the new responses overwrite the previous ones. The new responses appear in the results, and the previous responses are not saved.

Resources

To learn more about this feature, explore the additional resources below. These resources are available in English only.

Course

Visual Activities in the Lucid Suite
